3.8.5.4 URL-Based Call Control Integration
These features enable URL-based interaction and allow seamless integration with third-party software such as CRM and enterprise systems. The application supports two complementary mechanisms: receiving command URLs for remote call control and sending webhook notifications to forward call events to external services.
These URL commands can also be triggered locally on a Mac using AppleScript. This allows macOS users to start, answer, or end calls directly from small scripts.
Function
Direction
Purpose
Accept URL Commands
Third-party application (e.g. CRM) Enreach Contact Desktop Client
Allows third-party applications to control call actions via HTTP requests.
The URL commands must match the exact format expected by the Enreach Contact Desktop Client.
URL Call Notifications
Enreach Contact Desktop Client Third-party application (e.g. CRM)
The client automatically informs other applications when calls start, become active, or end.
The configured URLs must follow the format required by the receiving third-party application to ensure proper processing.
This makes it possible to control calls from other applications and to keep systems synchronized automatically.


All applications have to run on the same computer (PC or Mac).

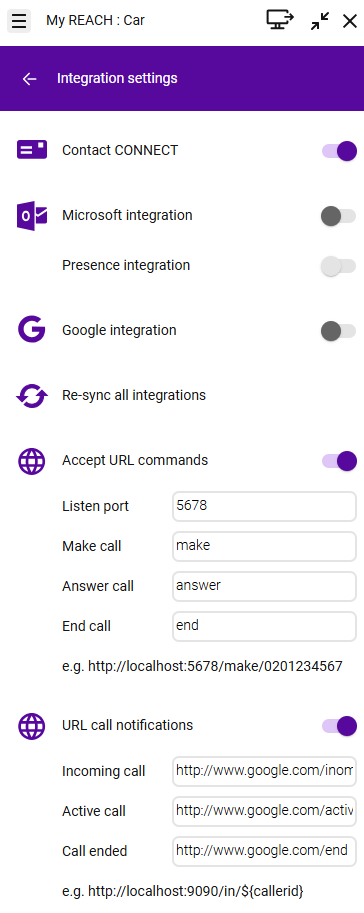

Accept URL Commands
With Accept URL Commands, other systems can control calls in the application by sending simple web requests (URLs).
When this option is enabled, the application opens a local HTTP listener on the specified port and waits for incoming command URLs. These commands can trigger call actions remotely.
Option
Explanation
Listen Port
The network port the application uses to receive commands. The external system must send requests to this port.
Make Call
This field defines the command segment used to trigger an outbound call through a URL request. To dial a number, the third-party sends an HTTP request to the listener port, including both the command keyword and the destination phone number.
Example:
http://localhost:5678/make/020123456
When accessed, this URL causes the application to immediately start dialing 020123456.
Answer Call
This field defines the command used to accept incoming calls via a URL request. When a call is ringing, the third-party system can trigger this endpoint to instruct the application to answer the call automatically.
Example:
http://localhost:5678/answer
When executed, the application answers the current incoming call.
End Call
URL path used to end the current call.
Example:
http://localhost:5678/end
URL Call Notifications
With URL Call Notifications, the application automatically informs other systems when certain call events occur.
When enabled, the application sends a notification (HTTP request) to a predefined URL. These notifications can include information such as the caller number.
Enreach Contact transmits phone numbers without a leading “+” by default (e.g., 4923147770).

If an international format is required (e.g., +4923147770), the “+” can be added directly in the configured URL, for example:
http://localhost:9090/incoming/+${callerid}
Note: With this approach, the “+” is also added to internal phone numbers.

Option
Explanation
Incoming Call
Sends a notification when a new call is received. A request is sent to the configured URL
Example:
http://example.com/incoming/${callerid}
or
http://localhost:9090/incoming/${callerid}
Active Call
Sends a notification when a call is answered.
Example:
http://example.com/active/${callerid}
or
http://localhost:9090/active/${callerid}
Call ended
Sends a notification when a call ends.
Example:
http://example.com/end/${callerid}
or
http://localhost:9090/end/${callerid}
