3.8.5.2 Microsoft integration
Microsoft Integration allows you to integrate your Microsoft 365 contacts within Enreach Contact Desktop. Incoming calls from one of your Outlook contacts are displayed with the Microsoft integration in Enreach Contact Desktop. You can also find your Outlook contacts in the phonebook in Enreach Contact Desktop.
In addition, you can synchronize your presence status with Microsoft Teams. Status changes in Enreach Contact Desktop are reflected in Microsoft Teams, and vice versa. See Microsoft Teams Presence Synchronization and Impact of Enreach Contact Status on Microsoft Teams Status.

If you have already logged in once with your Microsoft 365 account, see Login with Microsoft 365 Credentials, you no longer need to re-authenticate when enabling the Microsoft integration.

To enable Microsoft Integration
To activate the integration with Microsoft, you must log in to the Microsoft portal once.
1 Click on Settings in the menu.
2 Select Integration settings.
3 Activate the option Integration with Microsoft.

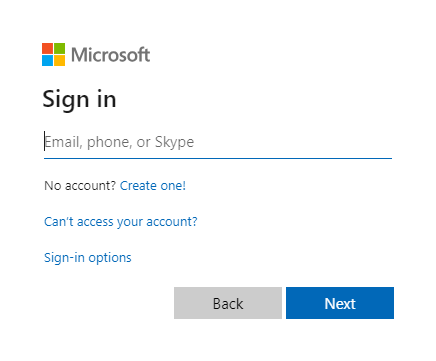

*The following dialog appears:
4 Enter your Microsoft e-mail address.
5 Click on Next.
6 Enter your password.
7 Click on Log in.
8 It is recommended to enable the Do not show again option so that you don't have to log in every time you use the integration with Microsoft.
9 Click on Yes.
*The interface is set up. Your Microsoft contacts are displayed in Enreach Contact Desktop.
Microsoft Teams Presence Synchronization
The Microsoft Teams presence synchronization ensures that your current status is consistently aligned between Enreach Contact and Microsoft Teams. This includes busy, available, away, and in-call states, and works in both directions so that changes in either application are reflected in the other.
Requirements for presence synchronization
To ensure that presence synchronization between Enreach Contact Desktop and Microsoft Teams works correctly, the username must be identical in both systems.
*The username used in Enreach Contact Desktop must exactly match the User Principal Name (UPN) of the Microsoft Entra ID account (e. g. firstname.lastname@company.com).
*Microsoft aliases are not supported, when used no presence synchronization will take place.
To enable Microsoft Teams presence synchronization
You can synchronize your Microsoft Teams presence status with your Enreach Contact Desktop presence status.
1 Click on Settings in the menu.
2 Select Integration settings.
3 Activate the Presence integration option.
*Your Enreach Contact Desktop presence status is synchronized with your Microsoft Teams presence status.

If you have already used Enreach Contact Desktop with a previous presence integration, you must disable both Microsoft and presence integration in the integration settings and then re-enable them to update your presence in Microsoft.

The following tables describe the synchronization rules. How a status set in Microsoft Teams (manually or automatically) is reflected in Enreach Contact, and how an Enreach Contact status is reflected in Microsoft Teams.
Impact of Microsoft Teams Status on Enreach Contact Status
Teams Status
(set by user)
Teams Status
(set automatically, based on activity)
Resulting Enreach Contact Status
Available
Available
Available
Available, out of office
Available
Busy
Busy
Busy
in a call
in MS Teams call
in a meeting
in calendar meeting
in a call, out of office
in MS Teams call
Do not disturb
Busy
Presenting
in MS Teams call
Away
Away
Away
Away last seen <time>
Away
Be right back
Away
Appear offline
No synchronization
Offline
No synchronization

Presence synchronization only works if the username in Enreach Contact Desktop matches the User Principal Name (UPN) of the Microsoft Entra ID account. Microsoft aliases are not supported. See Requirements for presence synchronization.

For more information on how your Enreach Contact status is displayed to users in your organization, see Status Display.
Impact of Enreach Contact Status on Microsoft Teams Status
Enreach Contact Status
(set by the user)
Enreach Contact status
(set automatically, based on the activity or via REACH)
Resulting Microsoft Teams Status
Available
No synchronization
Busy
No synchronization
In a call
In a call
In Enreach Meetings
In a call
Apperar away
Away
No synchronization
Appear offline
Offline
No synchronization

Presence synchronization only works if the username in Enreach Contact Desktop matches the User Principal Name (UPN) of the Microsoft Entra ID account. Microsoft aliases are not supported. See Requirements for presence synchronization

For more information on how to override your status in Enreach Contact, see 3.3 Presence overwrite.
